Product Specifications and Datasheets

Polysolar manufactures a wide range of different solar BIPV glass technologies designed to best meet the application and situational needs of our clients. All our glass products can be manufactured into insulated double-glazed units and are fully warranted and certified.

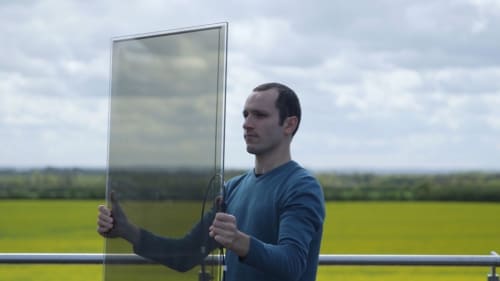

Transparent Solar PV Glass

PS-CT-series

Transparent see-through Cadmium Telluride (CdTe) thin-film Photovoltaic technology.

  • Colourless/grey/black pixelated appearance.
  • Available in range a transparencies, opaque to 80% light transmission.
  • Standard panel dimension 1200mm x 600mm x 7.1mm, but available in any bespoke shape and size up to 3m.
  • Full range of colour laminates or coatings available on request.
  • Efficiency from 12% or 118Wp/m².

To buy or for help specifying please call 01223 911534 or email info@polysolar.co.uk

pdf icon Datasheet pdf icon Warranty pdf icon Manual pdf icon PVsyst .pan pdf icon CAD .pdf pdf icon CAD .dwg pdf icon CAD .dxf
PS-CT-series author photo

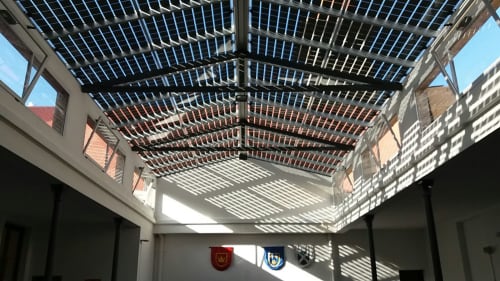

Semi Transparent BIPV Glass

PS-MC-ST-series

Semi Transparent Monocrystalline Silicon (c-Si) photovoltaic technology.

  • All Black square silicon cells embedded in a transparent glass glass laminate.
  • Available in range of transparencies and/or with back white or black film.
  • Standard panel 10% light transmission
  • Standard dimensions: 1049mm x 1770mm x 7.1mm (60 cell) - also available in bespoke dimensions.
  • Full range of coatings available on request.
  • Panels per pallet: 25
  • Efficiency from 20% or 210Wp/m².

To buy or for help specifying please call 01223 911534 or email info@polysolar.co.uk

pdf icon Datasheet pdf icon Warranty pdf icon Manual pdf icon PVsyst .pan pdf icon CAD .pdf pdf icon CAD .dwg pdf icon CAD .dxf
PS-MC-ST-series author photo

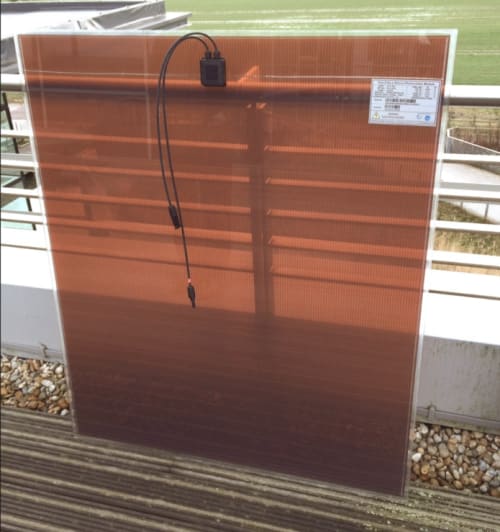

Amorphous Silicon Transparent Panels

PS-C

Polysolar’s PS-C glass panels incorporate amorphous silicon technology giving good efficiency at a low cost.

  • Up to 66W /m2
  • Attractive transparent amber-tinted colour to match existing building materials
  • Less affected by shading than conventional solar panels
  • Works down to ambient light levels
  • Standard dimensions 1100 x 1300 x 7.0 mm
  • Single of double glazed panels availiable

To buy or for help specifying please call 01223 911534 or email info@polysolar.co.uk

pdf icon Datasheet pdf icon Warranty pdf icon Manual pdf icon PVsyst .pan pdf icon CAD .pdf pdf icon CAD .dwg pdf icon CAD .dxf
PS-C author photo

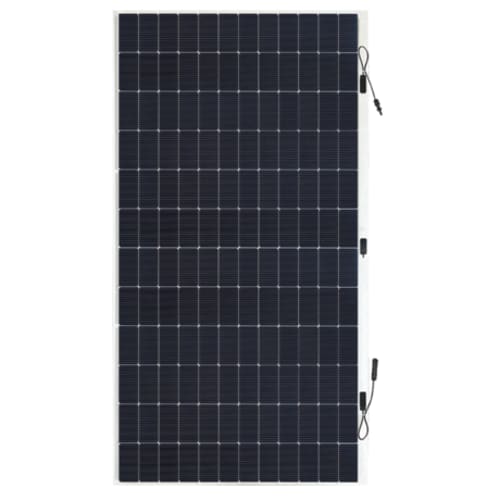

Lightweight Solar Panels

PS-MC-SP Series

Polysolar Mono PERC modules offer high efficiencies up to 22.1% combined with ultra light weight and flexibility.

  • Light Weight – 5.7kg (3kg/m2 ),2.5mm thick.
  • Flexible- ultra thin silicon wafers with advanced organic polymer encapsulation, offering bending radius of 0.3m.
  • Ease of Installation - No mounting frame requirement, with bonded or riveted or velcro fixing solutions.
  • High Efficiency – Busbar free design increases cell conversion efficiency and improved low radiance performance.
  • Lead Free – Environmentally friendly design without soldering and high reliability.

To buy or for help specifying please call 01223 911534 or email info@polysolar.co.uk

pdf icon Datasheet pdf icon Warranty pdf icon Manual pdf icon PVsyst .pan pdf icon CAD .pdf pdf icon CAD .dwg pdf icon CAD .dxf
PS-MC-SP Series author photo

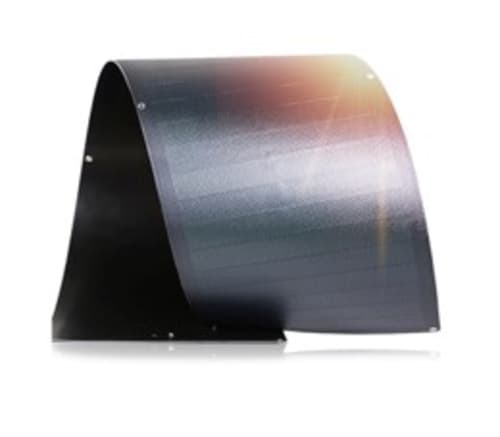

Flexible CIGS Panels

PS-CIGS-MS

Polysolar lightweight flexible stick-on panels offer the versatility for a wide range of BIPV applications .

  • Light Weight – 2.4kg/m2 and flexible
  • High performance thin-film CIGS PV Technology
  • Ease of Installation - no mounting frame requirement
  • Works well in low and ambient light conditions
  • Standard or bespoke sizes available

To buy or for help specifying please call 01223 911534 or email info@polysolar.co.uk

pdf icon Datasheet pdf icon Warranty pdf icon Manual pdf icon PVsyst .pan pdf icon CAD .pdf pdf icon CAD .dwg pdf icon CAD .dxf
PS-CIGS-MS author photo

Framed Shingled Panels

Terra Shingled

Innovative shingled technology giving high efficiency, better shade tolerance, fewer microcracks, less degradation, better hotspot resistance, 60% reduced lead and flourine free.

  • Black framed solar panels with no silver busbars.
  • High ethical and environmental standards.
  • Ideal for integration into structures and systems.
  • Dimensions: 1812mm x 1096mm x 30mm.
  • 15 Year materials warranty. 25 Year warranty for linear power output.

To buy please visit: tw-solar.co.uk

pdf icon Datasheet pdf icon Warranty pdf icon Manual pdf icon PVsyst .pan pdf icon CAD .pdf pdf icon CAD .dwg pdf icon CAD .dxf
Terra Shingled author photo

Lightweight Glass PV Panels

PS-MC-GL

Polysolar Mono PERC modules offer high efficiencies up to 21.6% combined with light weight and a 12-year warranty.

  • Light Weight – 9.1kg (4.7kg/m2 ),2.2mm thick.
  • Flexible- ultra thin silicon wafers with advanced organic polymer encapsulation, offering bending radius of 0.3m.
  • Ease of Installation - No mounting frame requirement, with bonded or clipped fixing solutions.
  • High Efficiency – Busbar free design increases cell conversion efficiency and improved low radiance performance.

To buy or for help specifying please call 01223 911534 or email info@polysolar.co.uk

pdf icon Datasheet pdf icon Warranty pdf icon Manual pdf icon PVsyst .pan pdf icon CAD .pdf pdf icon CAD .dwg pdf icon CAD .dxf
PS-MC-GL author photo

Organic Polymer Photovoltaics

PS-OPV-Series

Polysolar are leading developers of next generation Organic Polymer (OPV) printed photovoltaics.  Our transparent clear glass based products are not yet in manufacture but we can offer flexible OPV on plastic or glass substrates for specialist applications.

pdf icon Datasheet pdf icon Warranty pdf icon Manual pdf icon PVsyst .pan pdf icon CAD .pdf pdf icon CAD .dwg pdf icon CAD .dxf
PS-OPV-Series author photo
