Domestic Solar Carport
With the transition to electric vehicles, now more than ever it makes sense to power your car from our own clean renewable solar energy source – saving the planet and your fuel bills. What better way than a solar PV carport. Polysolar’s unique range of solar carports designed to suite every environment and budget will not only provide a shelter from the weather but can power your car or home.
Combined with battery storage, EV chargers and grid connection our intelligent solar controls can also optimise your power usage and minimise your costs. As leaders in BIPV Polysolar can deliver the full package from design, integration, construction and commissioning or just the kit for you to self install.
Polysolar offers a range of standard Solar Carport designs as well as bespoke solutions, deploying our unique transparent PV glass or conventional solar panels that for the watertight roof. We also offer integrated EV plugs (from a range of leading manufacturers) as well as integrated battery storage, inverters and lighting where required.
Y-Frame Design - Cantilever Structure
Our latest cantilever carport design minimises the structural floorplate to provide easy access and simple installation. Suitable for positioning at the side, front or rear of the property. The carport can be angled to optimise sunlight captured and fit within the site.
The carport framework is fabricated from curved tubular carbon steel and is galvanised, and powder coated to ensure a maintenance free life. The roof canopy offers a unitised watertight aluminium frame with solar PV laminated glazing panels.
The carport structure incorporates both the solar panels and cabling within its frame, as well as the control panel for both the solar electrical grid connection and electric vehicle charging point (EVCP). Providing points. This provides a secure, safe, and aesthetic design to complement your home and car.
The carport structure can be installed by our professional team using prefabricated foundations, that minimise disruption and associated ground works costs or can be installed on a preformed concrete bed foundation. In most cases there is no need for trenching or repaving.
Our Y-frame carport design can support Polysolar’s innovative range of solar PV glass technologies to provide a waterproof and translucent roof to the carport. This includes our unique see-through transparent thin-film solar glass panels as well as our mono-crystalline solar cells embedded in a glass laminate that offer various levels of light transmittance.
Our standard Y-frame design delivers a canopy of ~15 m² (~4.2m width x ~5.4m Length. Height 2.4m at lowest and 3.5m and highest. 5° degree pitch. Front or rear facing roof. An integrated 7kW EO tethered EV charger is included. Peak power up to 4.2kWp*. Variable bespoke dimensions are available in increments related to standard PV panel sections.
PS-CT - Thin-film Cadmium Telluride solar glass panels in landscape
Carport Standard Dimensions - 3.7m x 4.9m
PS-CT - Thin-film Cadmium Telluride solar glass panels in portrait
Carport Standard Dimensions - 3.8m x 4.8m
PS-MC - Mono-crystalline silicon solar glass-glass panels in portrait
Carport Standard Dimensions - 4.2m x 5.4m

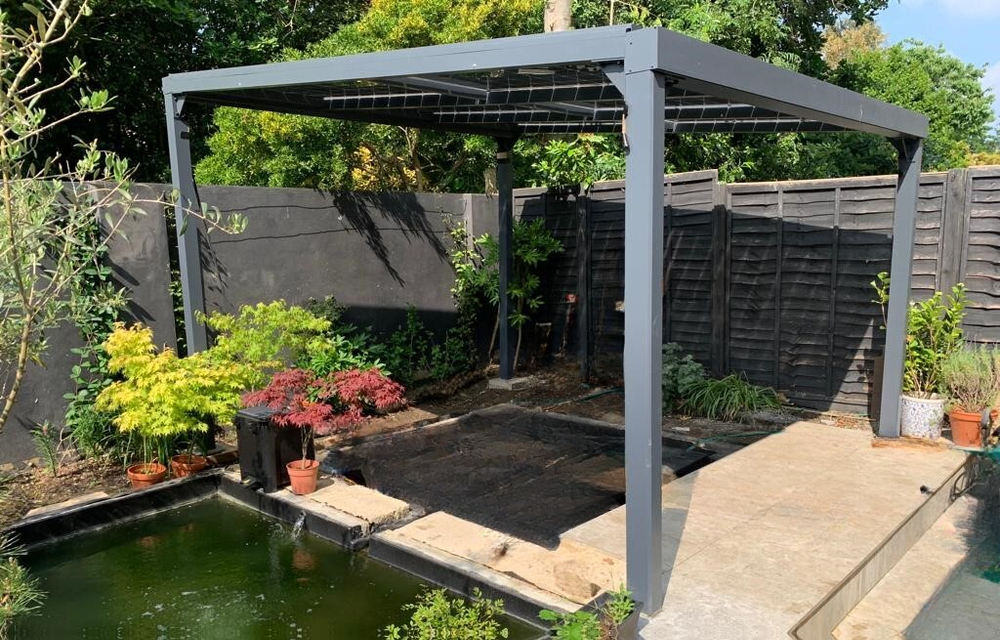

This simple domestic carport design provides a high performance solar canopy at a very competitive price. The key advantage of this carport design is that it minimises the depth of foundation required, with the cross supports providing the structural integrity required.
Available in white or gun metal grey, this is a lightweight fully galvanised aluminium structure, allowing simple erection even in the tightest of situations. The canopy’s modular roof design can accommodate semi transparent glass laminate solar panels or standard framed solar panels capable of generating 205Wp/m².

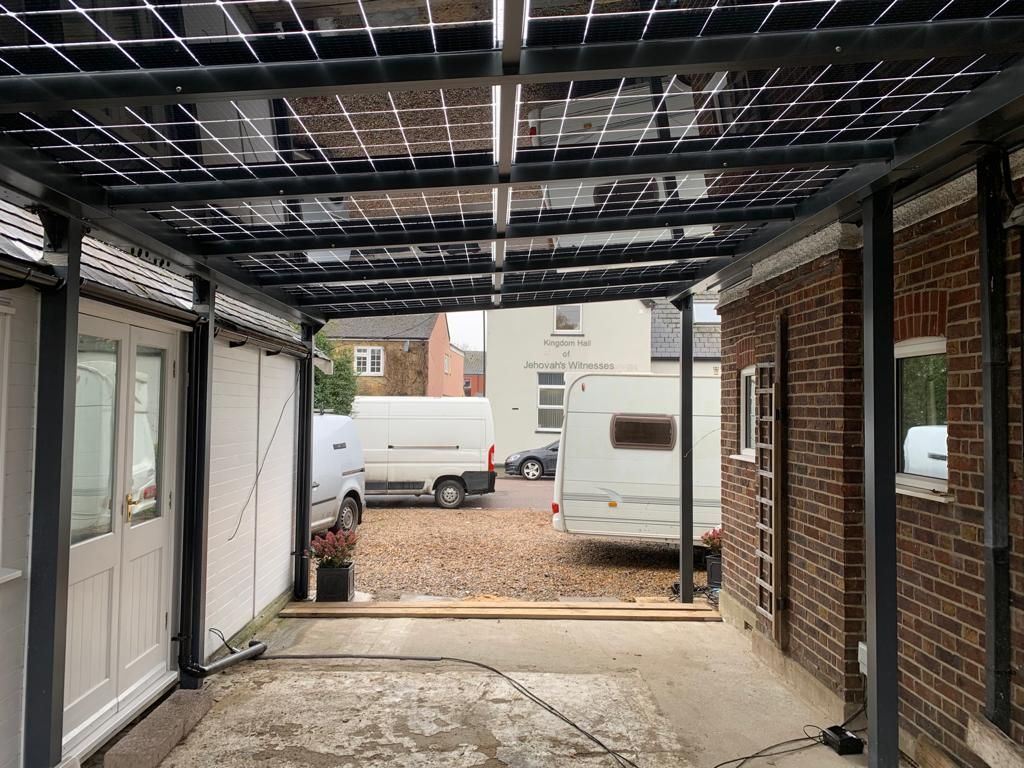

This four leg conventional carport design offers a slim aesthetic profile that will blend in with most driveways. As a modular self supporting canopy structure there are many sizing options available and the structural aluminium roofing can be mounted on bespoke frameworks if required.
The innovative design means all the solar cabling is hidden and protected in the framework. Equally the EV charging ports and inverters can be housed within the framework.

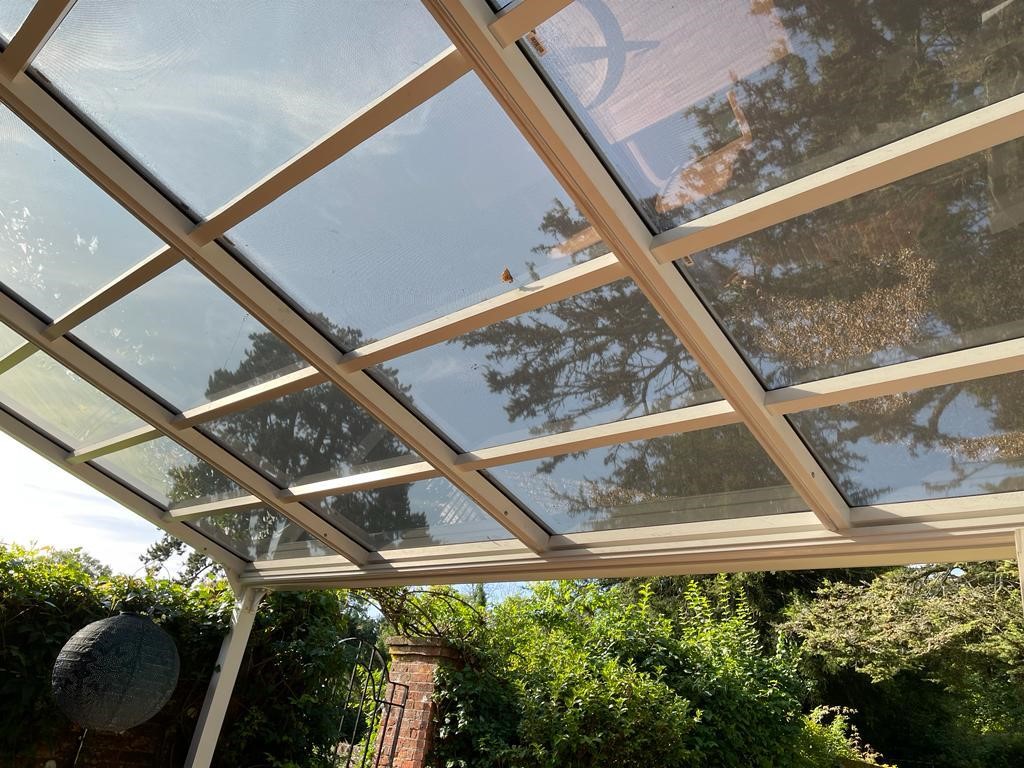

Available in gun metal grey the modern design can accommodate Polysolar’s see-through PV glass, as well as semi transparent glass laminate and convention farmed solar panels. The canopy can be attached directly to a building or stand alone.
Polysolar has been building bespoke solar carports for over a decade. We work with leading architects designers and fabricators to create the prefect tailored solution to your transport and home needs. We fabricate carports, garages and structures from materials that suite and blend with your property and provide.
Park and charge your car in a safe environment whilst generating solar electricity.
Polysolar integrates its solar canopies into homes in conjunction with electric vehicle charge points and home energy solutions, enabling the solar energy you generate to be used to power your vehicle.
Our solar glass solutions work in less than 10% sunlight, meaning you can harvest solar power for longer.
Use the form below to contact us for your personalised quotation.
Why Choose a Polysolar Carport?
- Over 10 years of experience of integrating transparent solar solutions
- Carport structure tested to extreme snow and wind loadings in the UK
- Compatible with EV charging points and battery systems
- Modular construction to reduce installation times
